Display a process state as text
Map preview value 2 to the red message Störung, then add English translations. This example has no PLC connection.
1. Select text output

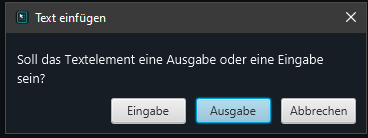

Choose Basic objects → Text → Output (Ausgabe). Place beside the tank below the button and double-click. For an unchanging heading use a Label instead.
2. Prepare properties

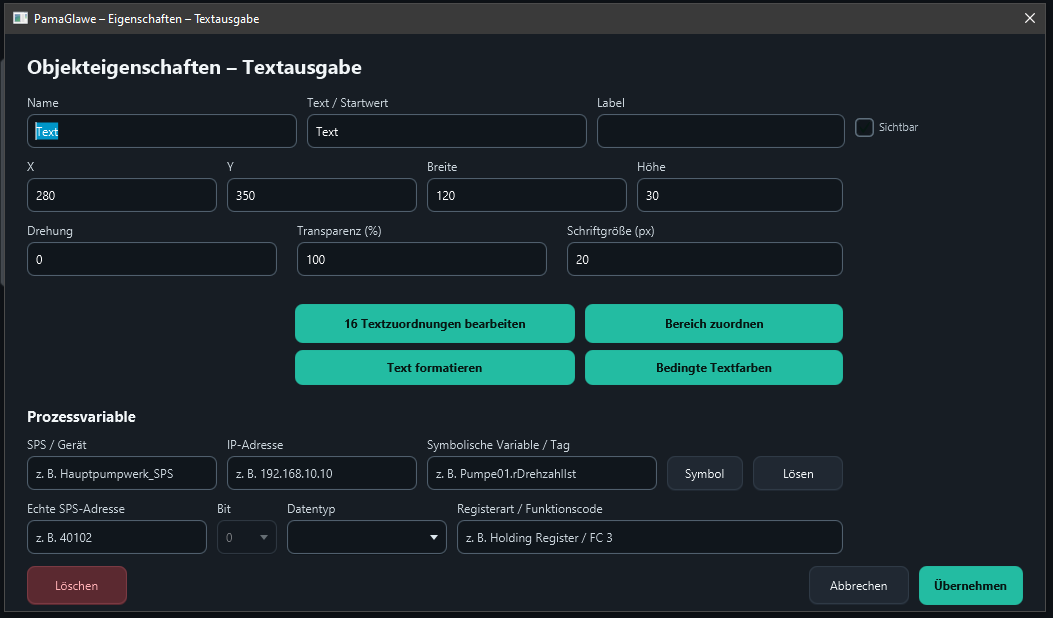

Set name Status_Tank_01, X/Y 280/350, size 120/30. Text / initial value remains Text and is the fallback for an unmapped value. Leave extra Label and all process fields empty.

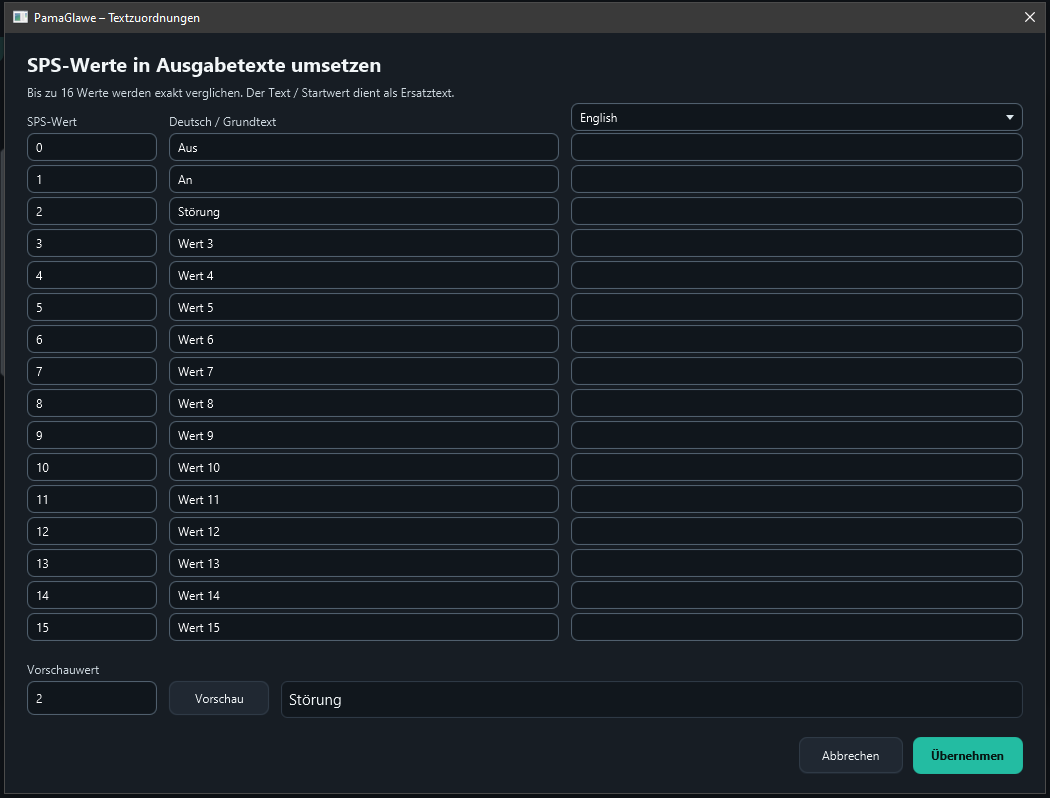

3. Map values to texts
Open Edit 16 text assignments. Entries compare exact values, not ranges. Use 0 → Aus, 1 → An, 2 → Störung. Other defaults read Wert 3 through Wert 15. Leave the translation column unchanged initially. Preview 2 should show Störung. Apply to store both mappings and preview.
4. Set conditional text colors

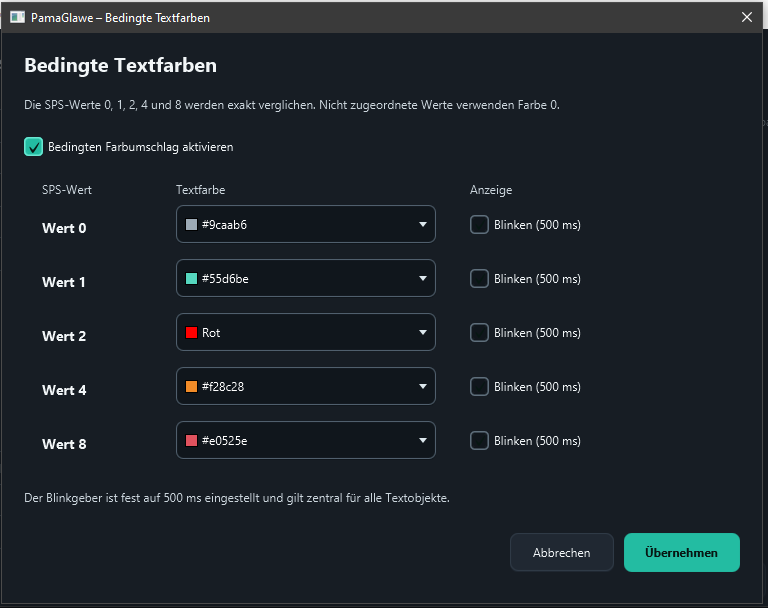

Open Conditional text colors and enable conditional color changes. Choose red for value 2; leave blinking off and apply. Text and color mappings are separate. Colors match only 0,1,2,4,8 exactly, not bit masks. Other values use color 0 even if they have their own text. Blinking is optional per color state, uses the dialog’s fixed 500 ms clock and is shown in Play mode.
5. Format the font

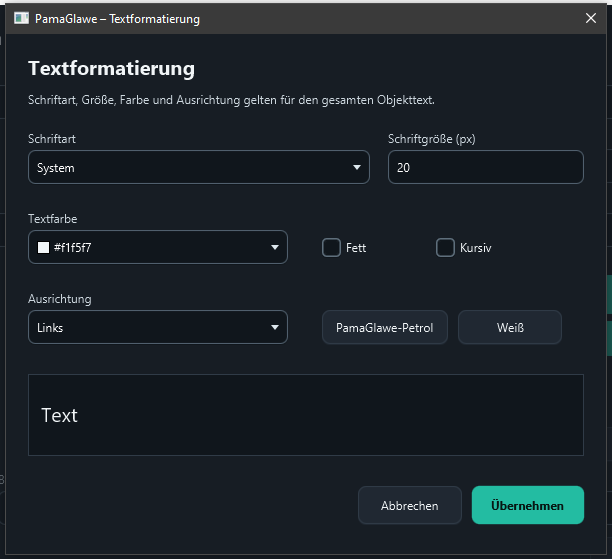

Use Format text: System, 20 px, left aligned, Bold enabled and normal color white. The screenshot precedes enabling Bold. The preview Text is for formatting, not state testing. Apply formatting and properties; conditional color takes precedence.
6. Check and save

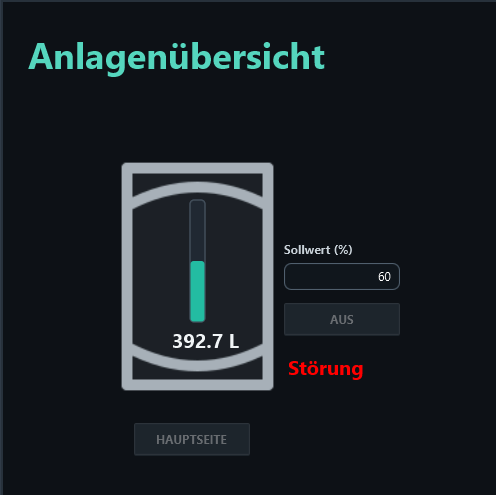

The result is red bold Störung from preview 2; it proves no real fault. Save Ctrl+S. During preparation in build 2.61.489, a defect allowed normal text color to override the conditional color. The result screenshot followed a local correction on 4 September 2026; it does not establish a public release. If settings are correct but text stays white, report version and OBJ-TEXT rather than permanently setting the base color red.
7. Translate state messages

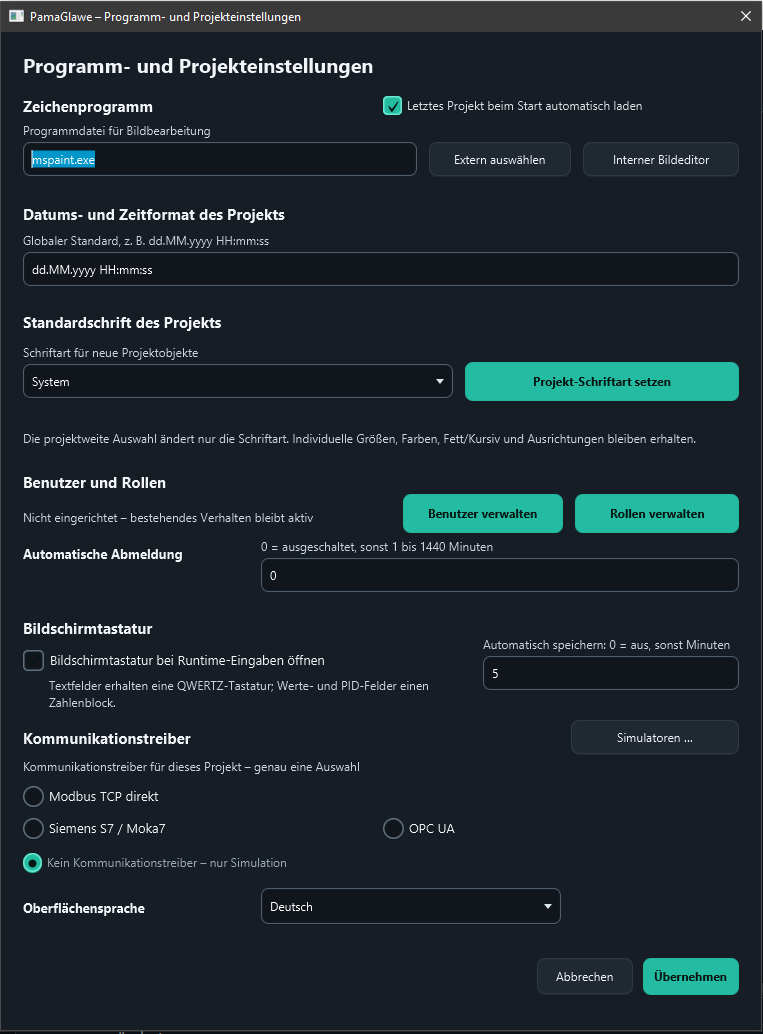

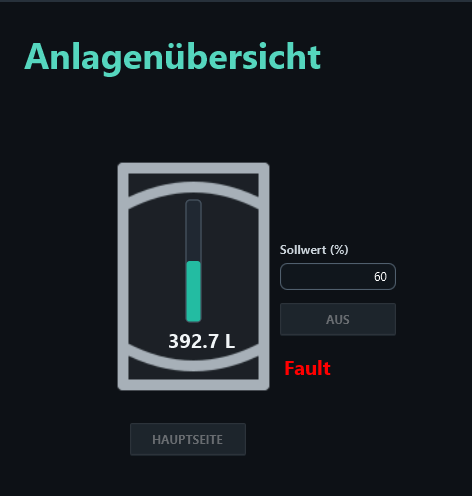

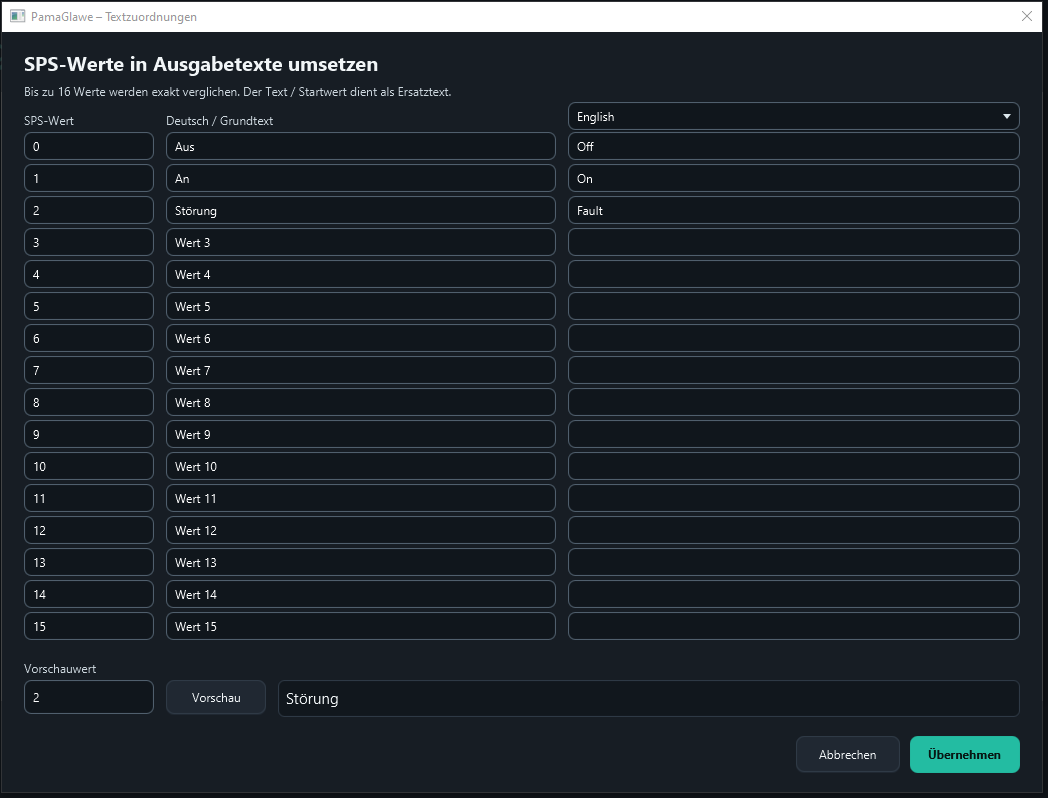

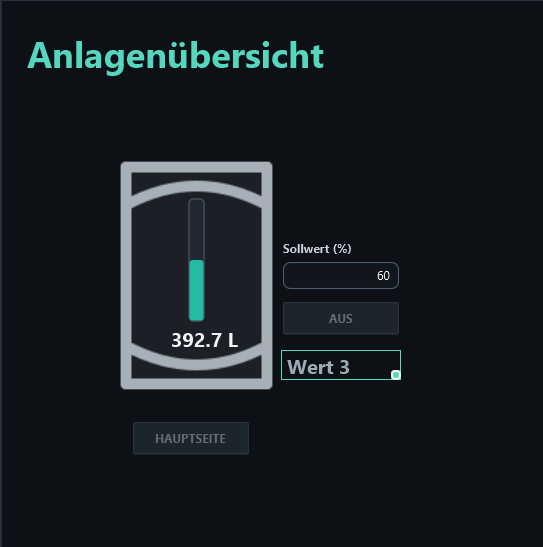

Reopen text assignments and select English in the right column: Aus → Off, An → On, Störung → Fault. This selector chooses the translation being edited, not the display language. Apply both dialogs and save. Open program/project Settings, change interface language from German to English and apply. Preview 2 now shows Fault in red. Other project text is not automatically translated. For missing-translation behavior, leave English for value 3 empty and preview 3: German base text Wert 3 appears, with color 0 because 3 has no color mapping.
An entirely unmapped value uses Text / initial value instead. Restore preview 2 and save; switch back to German for Störung.
8. Common questions
If Text appears, check the 2 mapping and applied preview. If white, check conditional colors and the version note. Value 3 uses color 0 by design. The on/off button does not change this text until both have suitable process assignments.
Keyboard shortcuts
Apply or close property dialogs, select objects on the canvas and leave any active text field before using an object shortcut.
- Delete — delete selection
- Deletes selected simple objects without another confirmation. Check the selection first.
- Ctrl+Z / Ctrl+Y — undo / redo
- Undoes or restores an available object edit. This is not a recovery mechanism for deleted pages or files.
- Ctrl+C / Ctrl+V — copy / paste
- Copies the selection and inserts an offset copy. Check names and process assignments afterward.
- Ctrl+X — cut
- Copies objects to the internal object clipboard and removes them from the page. Paste with Ctrl+V.
- Ctrl+A — select all
- Selects unlocked objects on the current page.
- Arrow keys — move precisely
- Moves the selection one pixel in the chosen direction within the page bounds.
- Shift+Arrow — next grid position
- Moves the selection in the grid direction using the page grid spacing.
- Ctrl+L / Ctrl+Shift+L — lock / unlock
- Locks the selection; Ctrl+Shift+L unlocks all locked objects on the current page.
- Esc — end editor action
- Cancels an action such as placement or clears the current selection.
- Ctrl+S — save project
- Saves applied changes. Save again after deleting, moving or copying.
The fixed global alarm area cannot be deleted or copied. Structural objects with assigned contents can ask an additional question about those contents.
